DESCRIPTION
The Strong-Drive SDW Truss-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply wood members, such as joining plated trusses and solid-sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2, 3, and 4-ply trusses. With the SDW Truss-Ply screw, multi-ply trusses and components can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC? and IBC? code requirements for the most common wood framing applications with wood and engineered wood.
DETAILS
- Brand Name: Simpson Strong-Tie
- Assembled Weight (lbs): 34.69
- Country of Origin: China
- MFG Part # (OEM): SDW22600
- Material: E-Coat? Electrocoating Carbon Steel

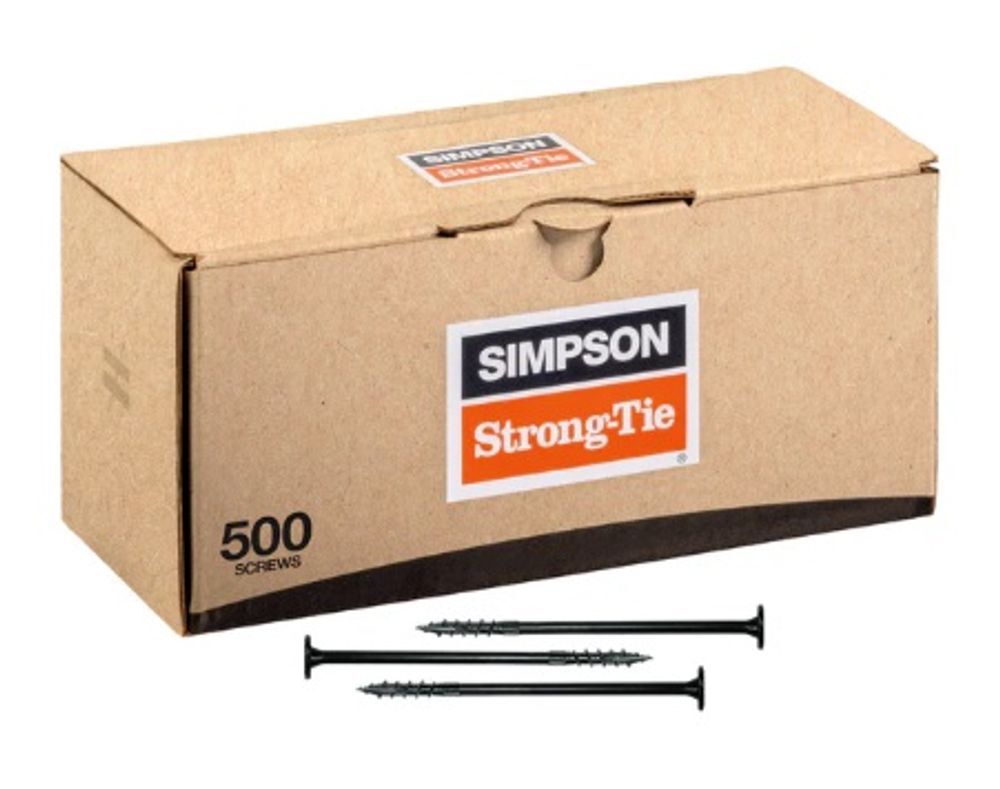

- Package Contents: (500) Truss-Ply Screw
- Product Condition: New
- Restrictions: CA Prop 65

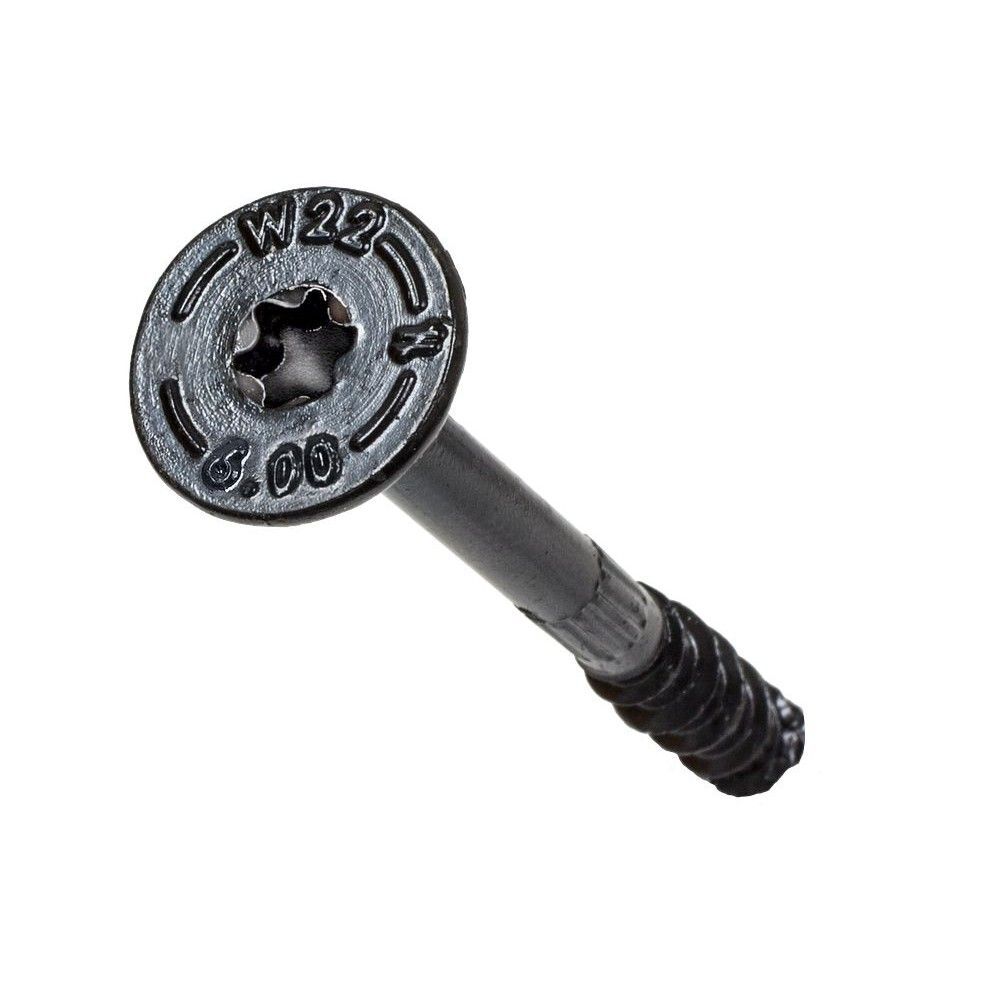

- Size: 0.22 In. Shank Diameter, 6 In. Length, 1-3/8 In. Thread Length, 0.76 In. Head Diameter
- UPC: 707392576303
- Warranty Type: No Manufacturer??s Warranty
