DESCRIPTION

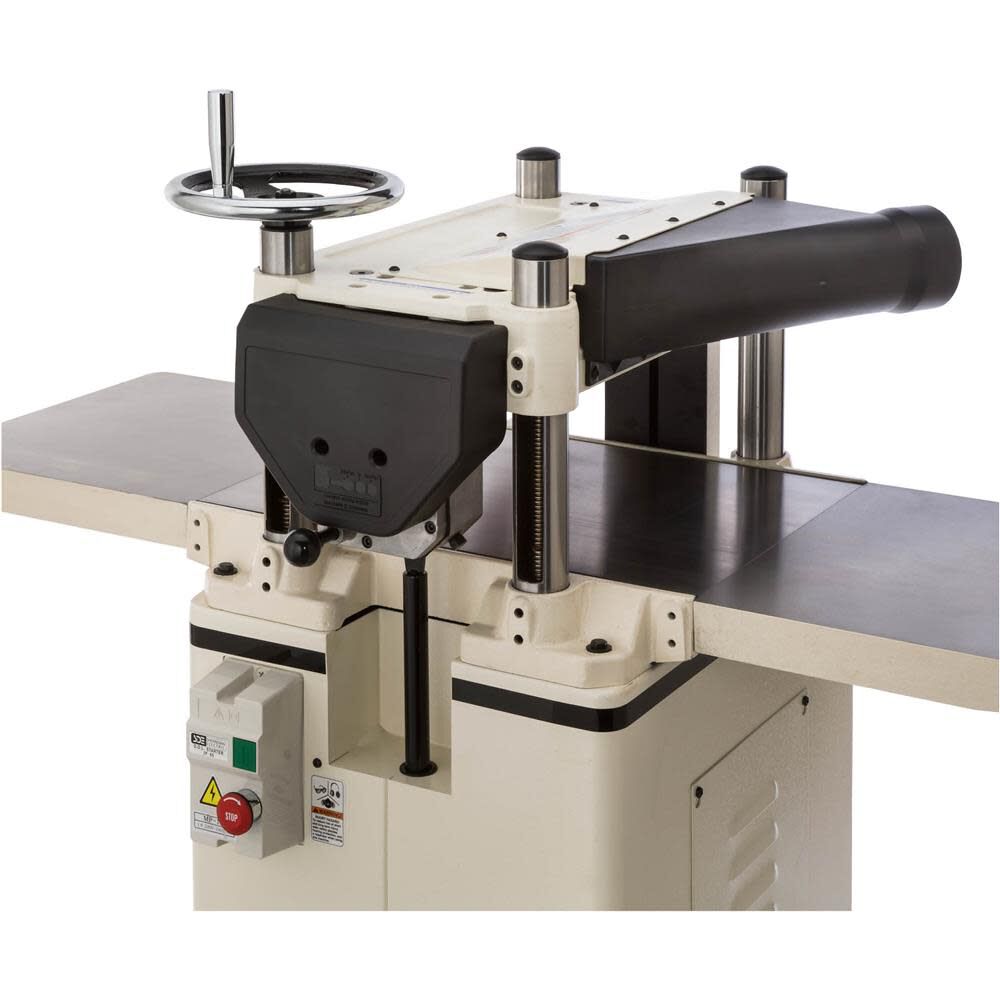

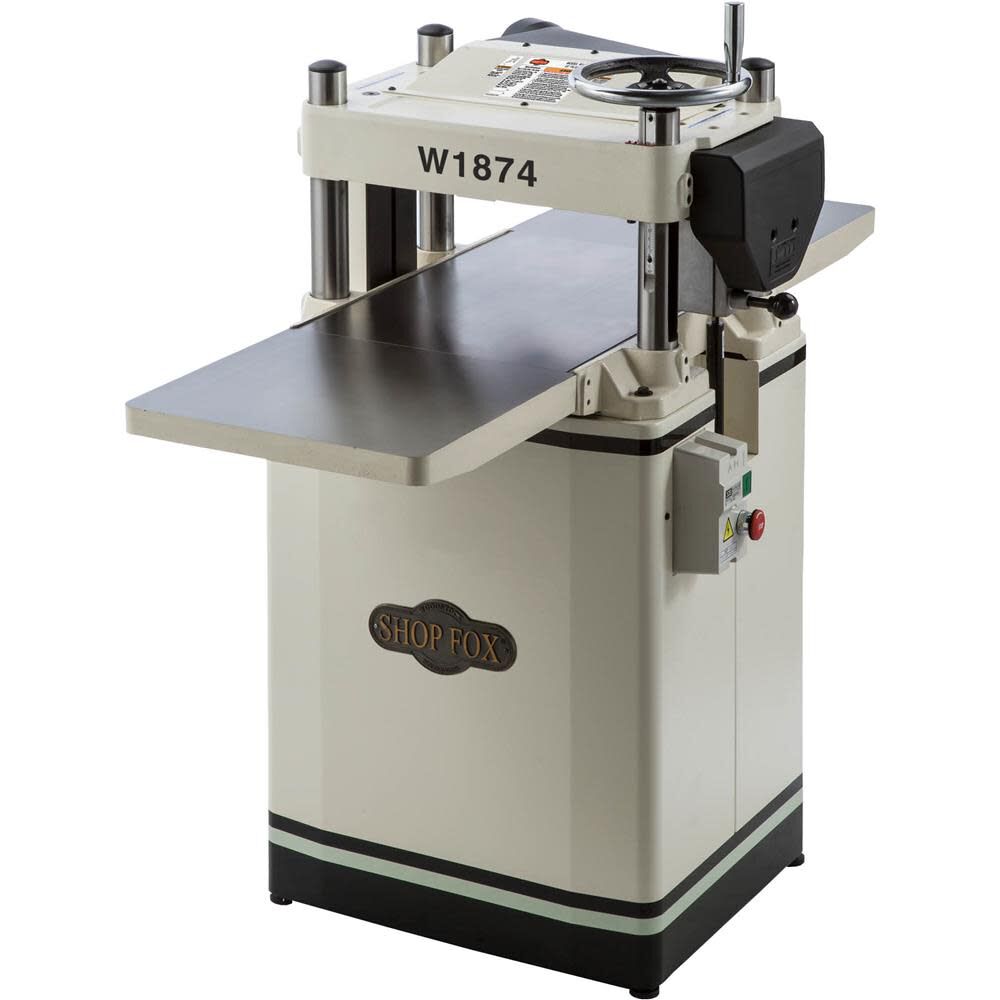

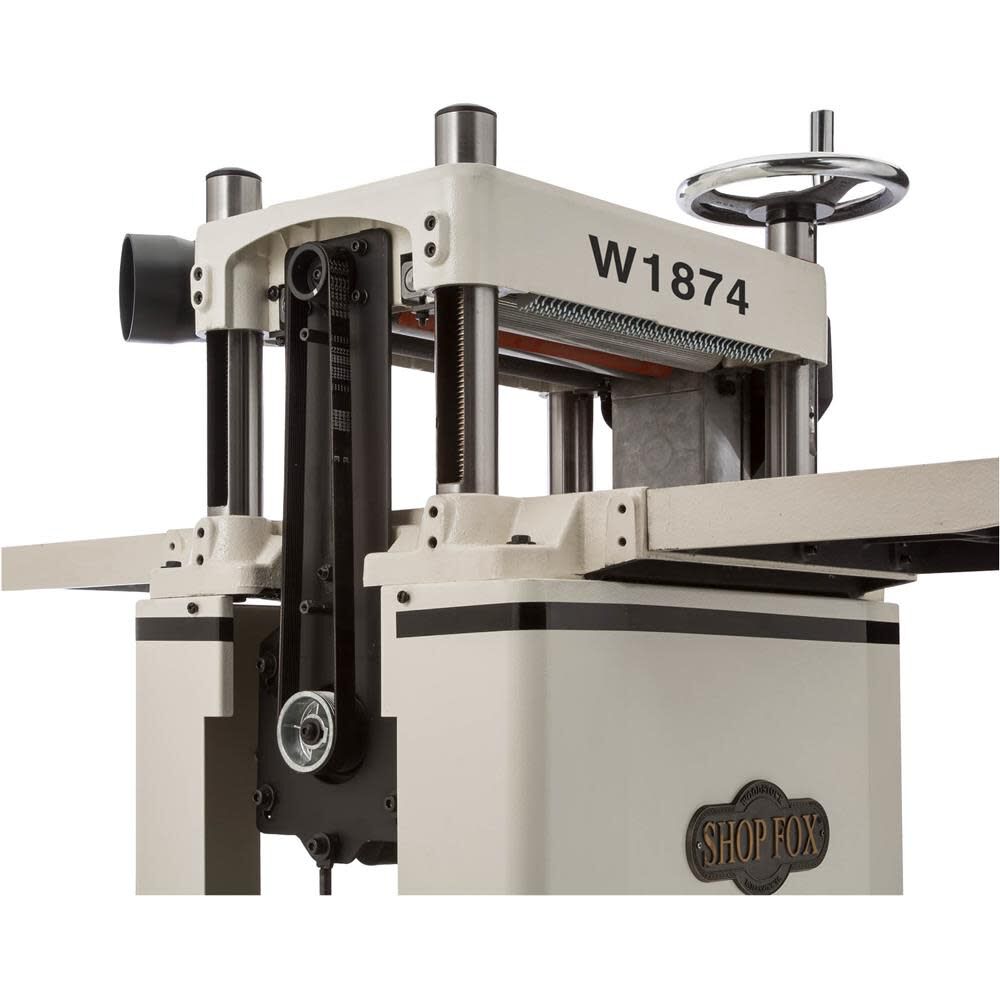

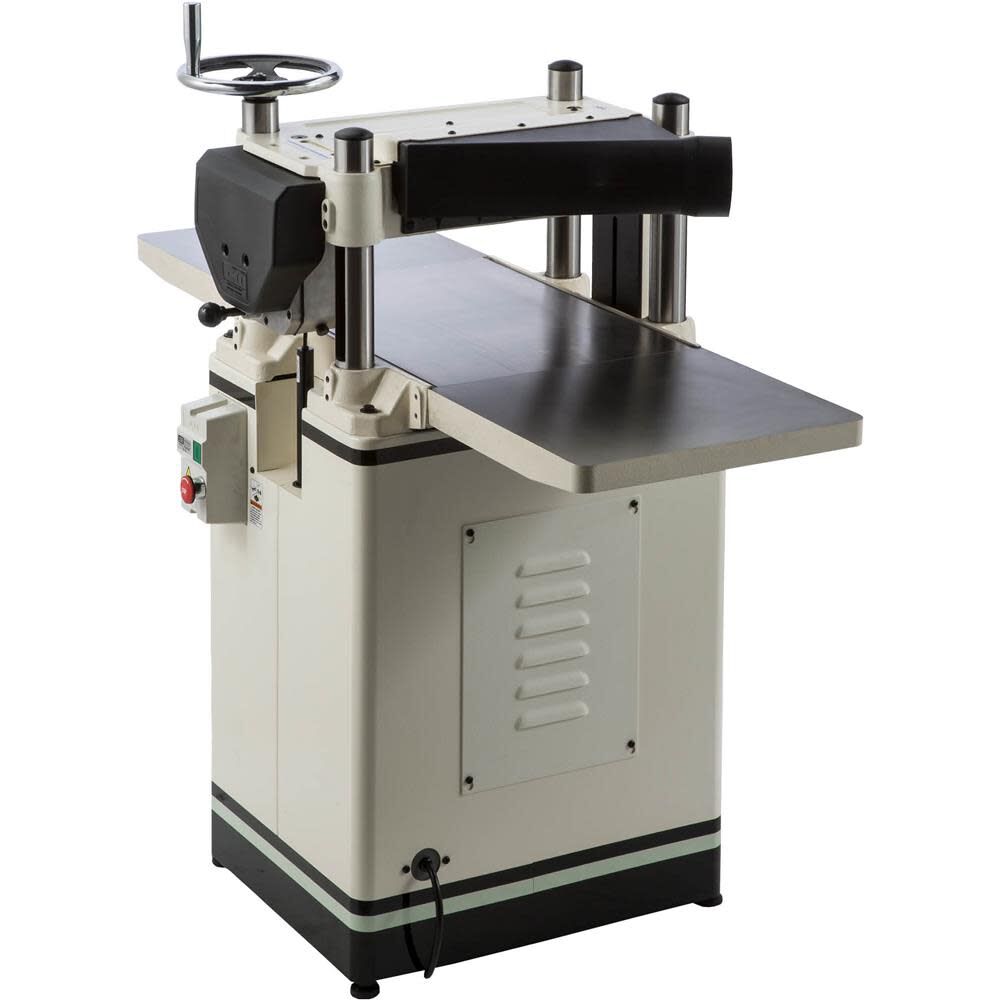

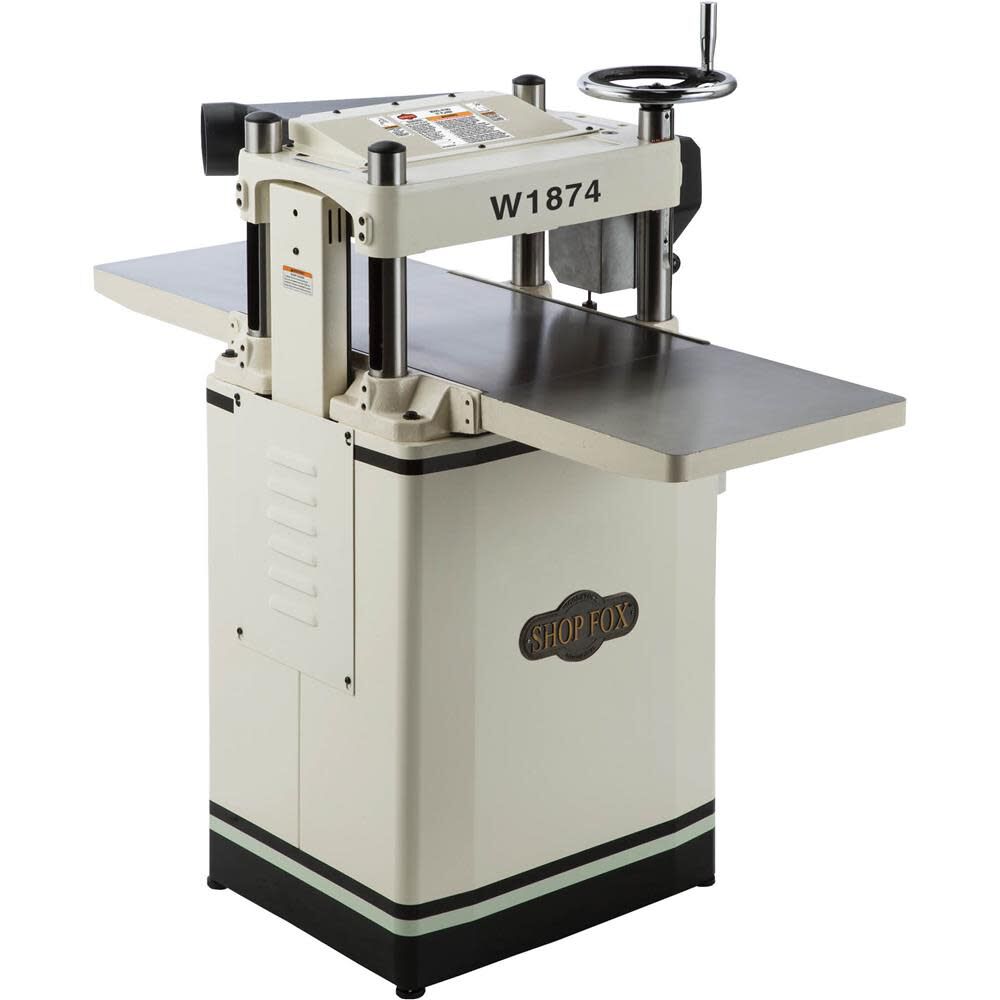

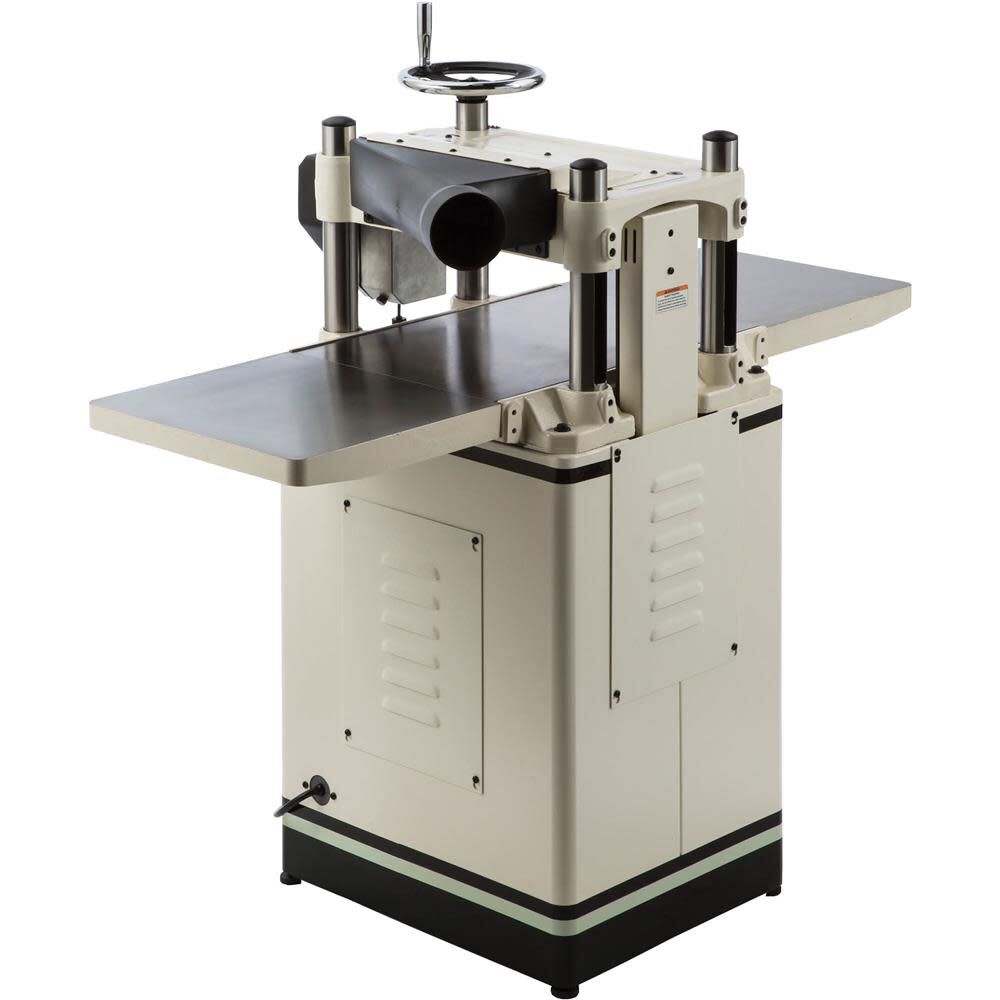

The W1874 15 In. Fixed table planer with helical cutterhead features a powerful 3HP motor and 5200 Rpm, 4-row helical cutterhead. The fixed table height design allows for permanent infeed/outfeed roller setups for greater efficiency in production settings. Carbide inserts with 4 cutting edges make for ultra-smooth finishes in figured wood and last up to 10 times longer than conventional knives. The 2-speed gearbox allows you to choose between 16 and 28 Fpm for a smooth finish or high production feed rate. Sturdy four-column supports with twin gas struts on either side make for easy headstock height adjustments. Four heavy-duty support columns. Fixed table height design. Anti-kickback fingers. Oil bathed 2-speed gearbox. Cast-iron extension wings. Elevation scale with both inch and metric. Magnetic switch. Poly-V belt drive. Cabinet-style stand. Large top-mounted handwheel. Includes 5 spare carbide inserts. CSA certified.
DETAILS
- Brand Name: Shop Fox
- Amperage (A): 20
- Assembled Weight (lbs): 377
- Bench or Stationary: Stationary
- Blade Count: 5
- Blade Length (in): 15
- Color: White
- Country of Origin: Taiwan
- CSA Certified: Yes
- Drive Motor System: Electric
- Horsepower (hp): 3
- Length: 10 ft
- Maximum Cutting Depth (in): 1/16
- Maximum RPM: 5200
- Maximum Width Cutting Capacity (in): 15
- Package Contents: 15 In. Fixed-Table Planer with Helical Cutterhead, Knife-Setting Jug, 5 Spare Cabinet Inserts
- Product Condition: New
- Restrictions: CA Prop 65
- Switch Type: Magnetic Switch with Thermal Overload Protection
- Warranty Type: 2 Years
- Weight (lbs): 377
