DESCRIPTION

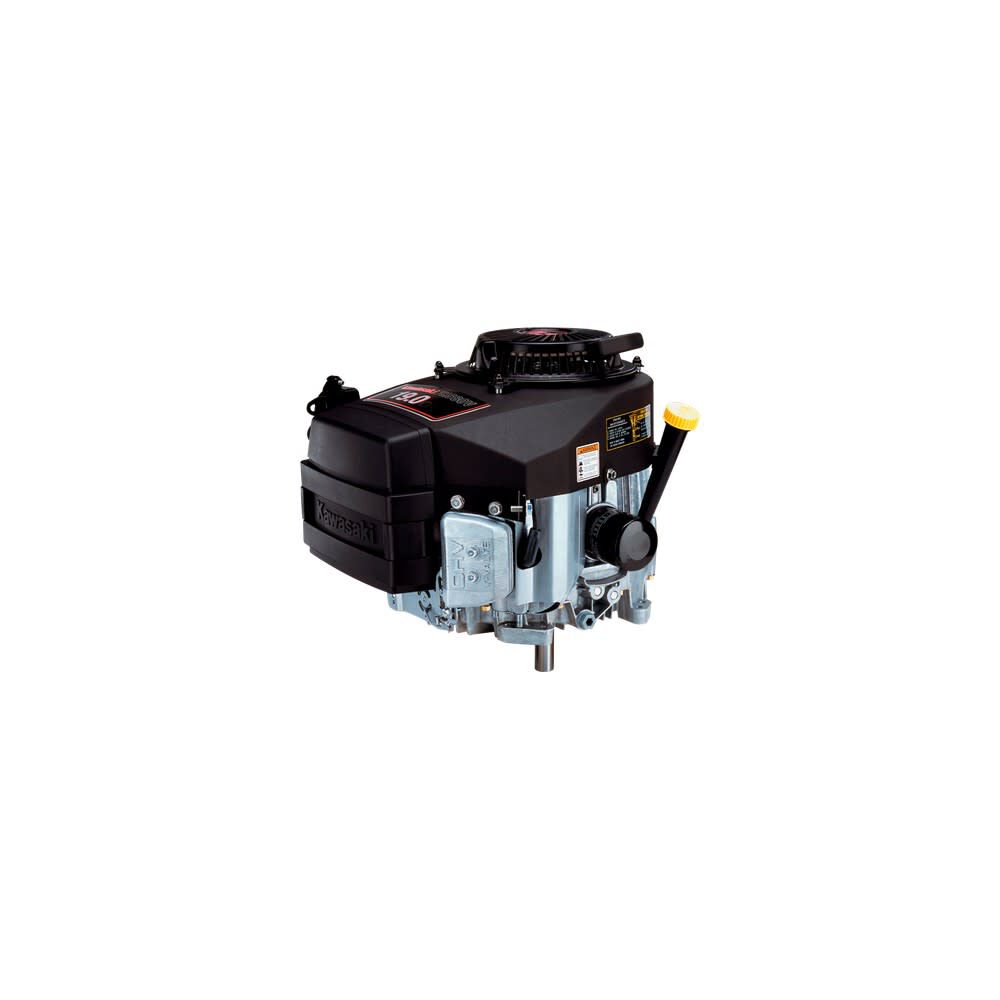

The Kawasaki FH580V is a 0.59 l (585 cc, 35.7 Cu In.) V-twin 90 Deg air-cooled 4-stroke internal combustion small gasoline engine with vertical shaft, manufactured by Kawasaki Heavy Industries Ltd., for general-purpose applications. The FH580V has V-twin 90 Deg design with vertical PTO shaft, cast-iron cylinder liners, and overhead V-valves. The engine is equipped with inner vent carburetor, pulse fuel pump and electronic spark ignition system. The motor uses a full pressure lubrication system with spin-on oil filter and dual element air cleaner. The engine has automatic compression release (ACR) system with recoil or electric starter. It has a 74 mm (2.91 In.) cylinder bore and 68.0 mm (2.68 In.) piston stroke. Compression ratio rating is 8.5:1. The Kawasaki FH580V produced 19.3 PS (14.2kW, 19HP) at 3600 Rpm of maximum horsepower and 49.6 Nm (5.06 kg??m, 36.6 Ft. lb) at 2000 Rpm of torque.
DETAILS
- Brand Name: Kawasaki Engines
- Assembled Weight (lbs): 71.2
- Capacity: Oil: 1.79 Qt
- Color: Multiple
- Country of Origin: United States
- Cylinder Count: 2
- Engine Displacement (cc): 585
- Engine Torque (ft-lbs): 36.6
- Fuel Type: Gas
- Ignition Source: Electronic
- MFG Part # (OEM): FH580V-GS29S
- Material: Cast Iron
- Package Contents: Replacement Engine
- Product Condition: New
- Restrictions: CA Prop 65
- Start Type: Electric or Recoil
- UPC: 406058000052
- Warranty Type: 3 Years Limited
- Weight (lbs): 71.2
