DESCRIPTION

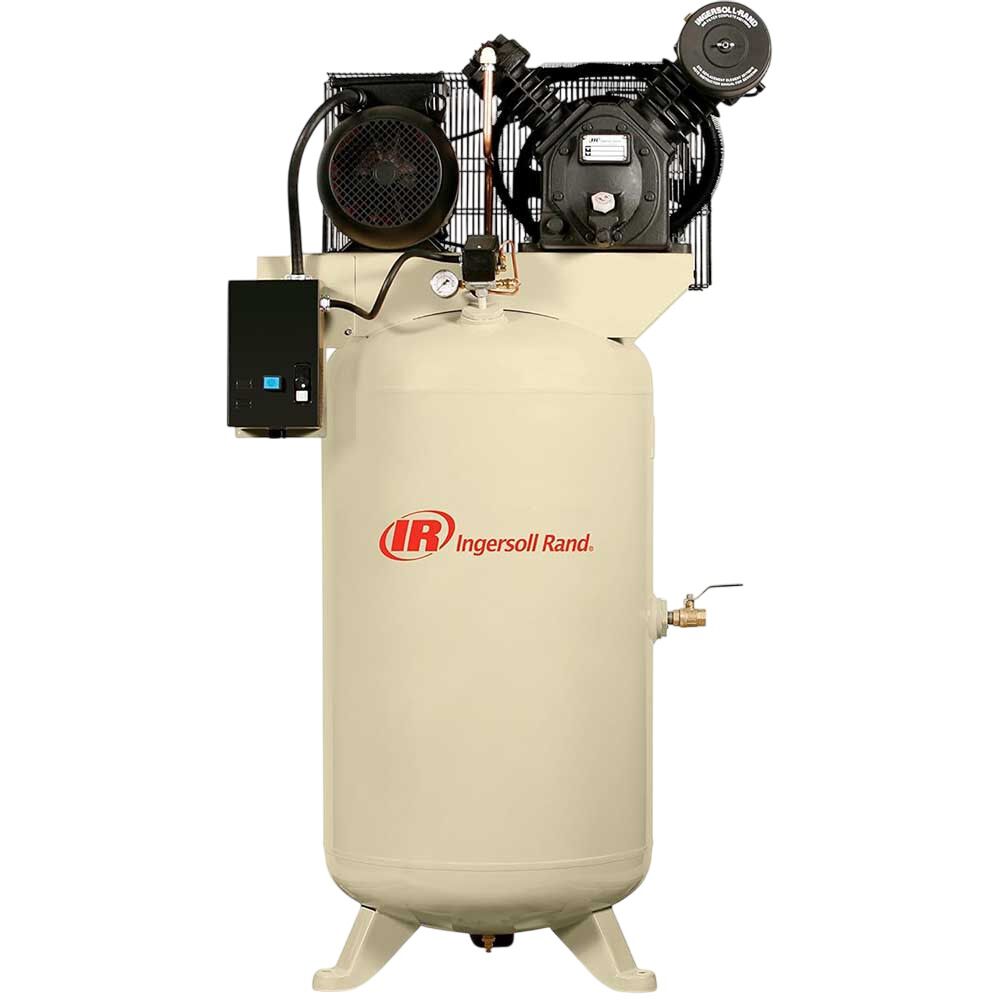

The Ingersoll Rand? 5 HP 80 Gal 230 V 1 PH Vertical Air Compressor runs off a single-phase 230V power supply: the type typically found in homes and small commercial buildings. It delivers a maximum 175 pounds per square inch (psi) of air pressure with a 14 cubic feet per minute (CFM) flow rate. Using a two-stage compression process, the Ingersoll Rand 230V single-phase vertical air compressor offers greater energy efficiency than a single-stage model and is capable of higher pressures. Contributing to the compressor?s reliable performance is an excellent pump, which has a finned copper intercooler to cool the air between compression stages. The 100 percent cast-iron pump with oversized industrial-grade bearings has an expected service life of more than 15,000 hours. This value-package version of the Ingersoll Rand 5-HP 80-gallon vertical air compressor also features an automatic start/stop pressure switch and manual tank draining.
DETAILS
- Brand Name: Ingersoll Rand
- Air Compressor Pump Design: Oil Lubricated
- Amperage (A): 28
- Assembled Weight (lbs): 505
- California Proposition 65 Warning Required: Yes
- Color: Tan
- Compressor Design: Vertical
- Country of Origin: United States
- Decibel Rating (dB): 85
- ETL Listed: No
- Full Roll Cage: No
- Handle Included: No
- Height (in): 76
- Horsepower (hp): 5
- Length: 76 in
- Lock-on Switch: No
- MFG Part # (OEM): 45464989
- Maximum Pressure Rating (psi): 175
- Operating Position: Vertical
- Package Contents: Value package includes compressor, magnetic starter (except 2340 models with single-phase voltage), manual drain, automatic and start/stop control with pressure switch
- Phase: 1
- Product Condition: New
- Side Handle: No
- Switch Type: Plug in starter
- Tank Capacity (gal): 80
- Tank Configuration: Single
- Tank Material: Cast iron
- Tank Pressure Gauge: Yes
- UL Listed: No
- UPC: 400340000799
- Voltage: 230
- Warranty Type: 1 Year Limited
- Weight (lbs): 505
- Wheeled: No
