DESCRIPTION

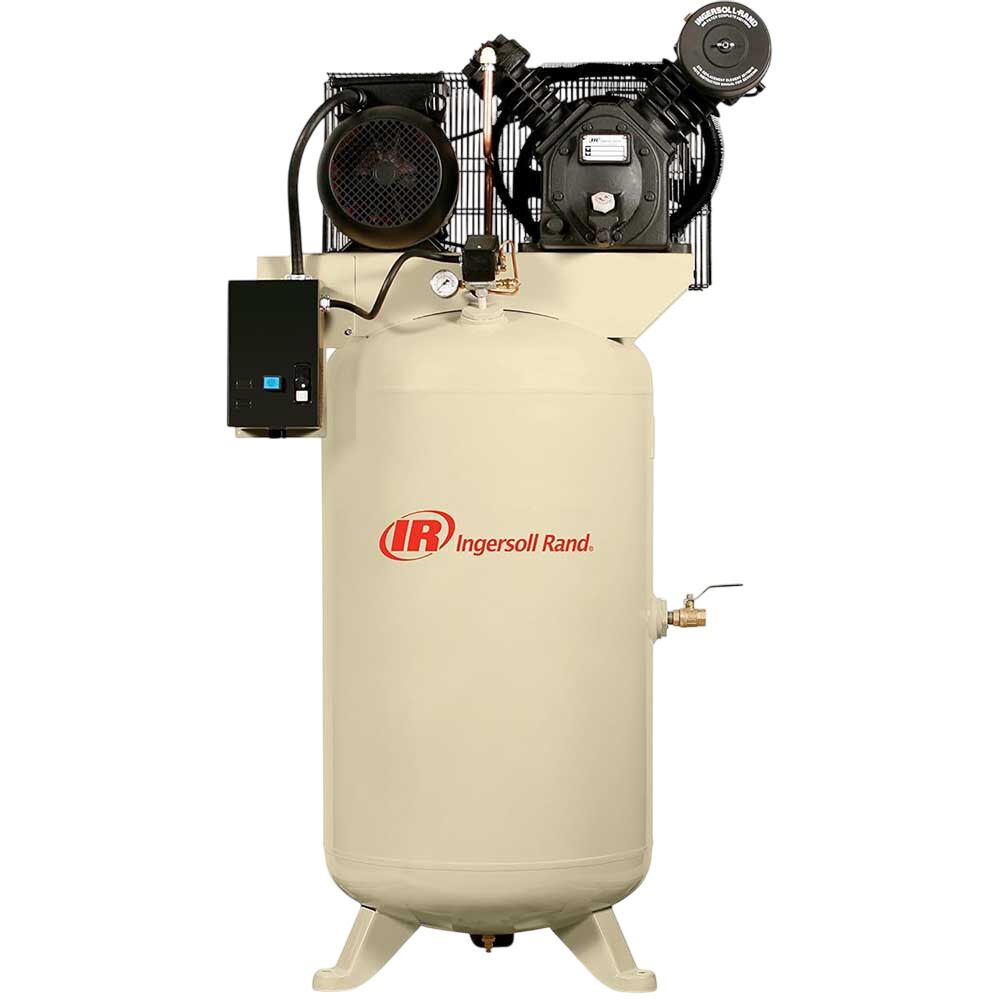

The Ingersoll Rand? 5 HP 60 Gal 230 V 1 Ph Vertical Air Compressor??s cast iron pump components offer continuous-duty air production. An overhung crankshaft, individually cast cylinders and one-piece connecting rod simplify maintenance, and a 5-horsepower ODP motor provides efficient power. The Ingersoll Rand 230V 1-phase vertical air compressor generates up to 14 cubic feet per minute (CFM) of air at 175 pounds per square inch (psi) of pressure. Precisely engineered pump components, such as high-efficiency finger valves, ensure dependable performance.Ingersoll Rand??s 5-horsepower 60-gallon vertical air compressor has a balanced cast-iron belt wheel that minimizes vibrations and a copper intercooler that lowers output air temperatures. An OSHA-compliant enclosure enhances worker safety, and a 60-gallon tank delivers stable output pressures. The industrial air compressor??s air-cooled dryer eliminates moisture from discharged air. An oil sight glass simplifies system monitoring, and an automatic start/stop control with a NEMA-1 pressure switch offers efficient operation. The unit??s ASME fittings are compatible with a broad range of pneumatic equipment. The vertical air compressor is prewired for 230V single-phase power, and its small footprint offers installation flexibility.
DETAILS
- Brand Name: Ingersoll Rand
- Air Compressor Pump Design: Oil Lubricated
- Amperage (A): 28
- Assembled Weight (lbs): 435
- California Proposition 65 Warning Required: Yes
- Color: Tan
- Compressor Design: Vertical
- Country of Origin: United States
- Decibel Rating (dB): 85
- ETL Listed: No
- Full Roll Cage: No
- Handle Included: No
- Height (in): 76
- Horsepower (hp): 5
- Length: 76 in
- Lock-on Switch: No
- MFG Part # (OEM): 45464922
- Maximum Pressure Rating (psi): 175
- Operating Position: Vertical
- Package Contents: Value package includes compressor, magnetic starter (except 2340 models with single-phase voltage), manual drain, and automatic start/stop control with pressure switch
- Phase: 1
- Product Condition: New
- Side Handle: No
- Switch Type: Plug in starter
- Tank Capacity (gal): 60
- Tank Configuration: Single
- Tank Material: Cast iron
- Tank Pressure Gauge: Yes
- UL Listed: No
- UPC: 400340000782
- Voltage: 230
- Warranty Type: 1 Year Limited
- Weight (lbs): 435
- Wheeled: No
