DESCRIPTION

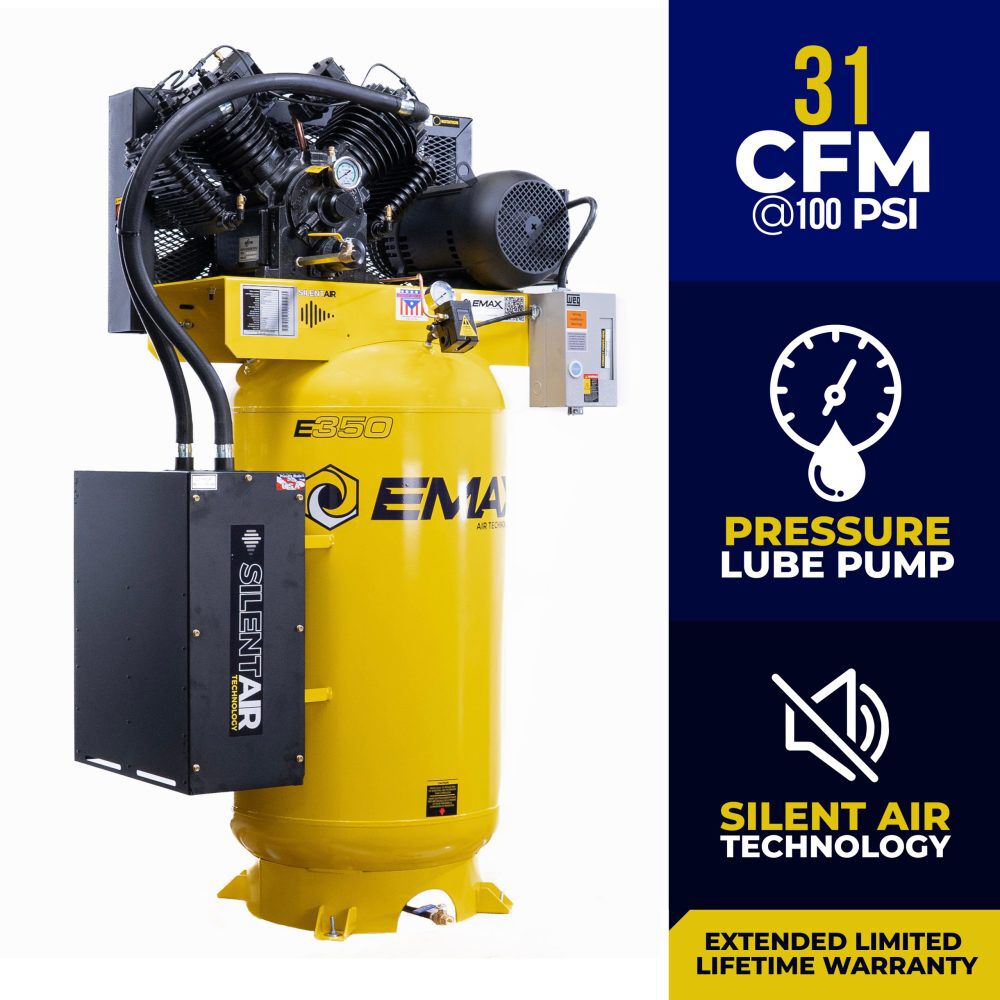

This EMAX Industrial 7.5HP 2 stage inline, 1-Phase vertical 80 gallon piston air compressor is designed for up to 60000 hours based on B10 bearing life. This unit delivers 31 Cfm @ 100 Psi, top Psi of 175. Our unit features industrial Grade electric motors, magnetic starter, manual ball valve tank drain, powder coated ASME tank 200 Psi rating, all paired with all cast iron 60000 hour rated patented pressure lubricated reciprocating pump. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed by the warranty in the industry! Pump comes with 70 hour break-in oil, this compressor also includes your first maintenance kit for use after your first 70 hours of compressor break-in.
DETAILS
- Brand Name: EMAX
- Air Volume (CFM): 31
- Application: For Industrial Applications
- Assembled Weight (lbs): 861
- Average Air Consumption (CFM): 31
- Compressor Design: Vertical
- Country of Origin: United States
- ETL Listed: Yes
- Horsepower (hp): 7.5
- MFG Part # (OEM): ES07V080V1K
- Maximum Air Pressure (psi): 175
- Maximum Pressure Rating (psi): 175
- Maximum RPM: 1740
- Maximum Speed (rpm): 1740
- Package Contents: Compressor with Isolator Pads, EFKIT008AWBS ?C (2) Smart Oil ?C Model: OILPIS102Q, (2) Air Filter ?C Model: FILTER057, (8) Silent Air Filters ?C Model: FILTER107, (1) Spin-On Oil Filter ?C Model: FILTER130
- Phase: Single Phase
- Pressure Rating (psi): 175
- Product Condition: New
- Restrictions: CA Prop 65
- Size: 3/4 In. Outlet
- Tank Capacity (gal): 80
- UPC: 810070058395
- Voltage: 230 Volts
- Warranty Type: 1 Year
- Weight (lbs): 861
