DESCRIPTION

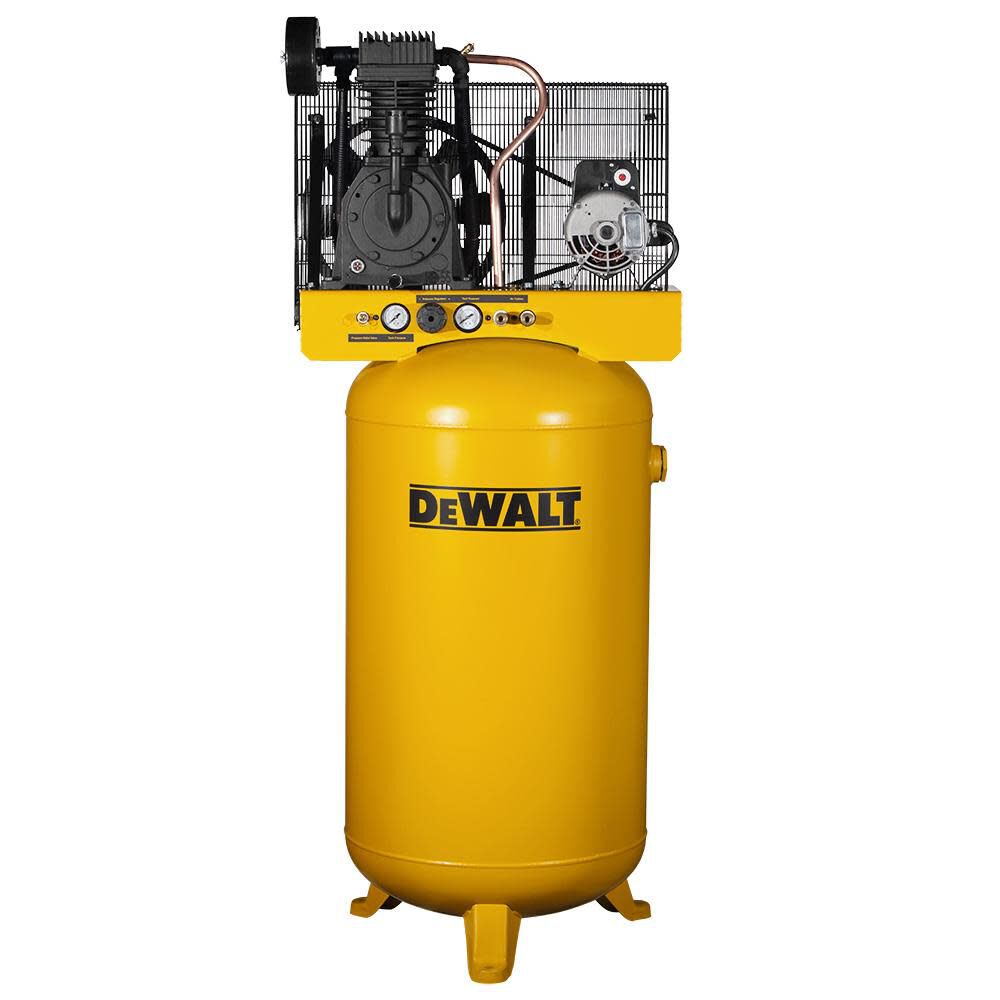

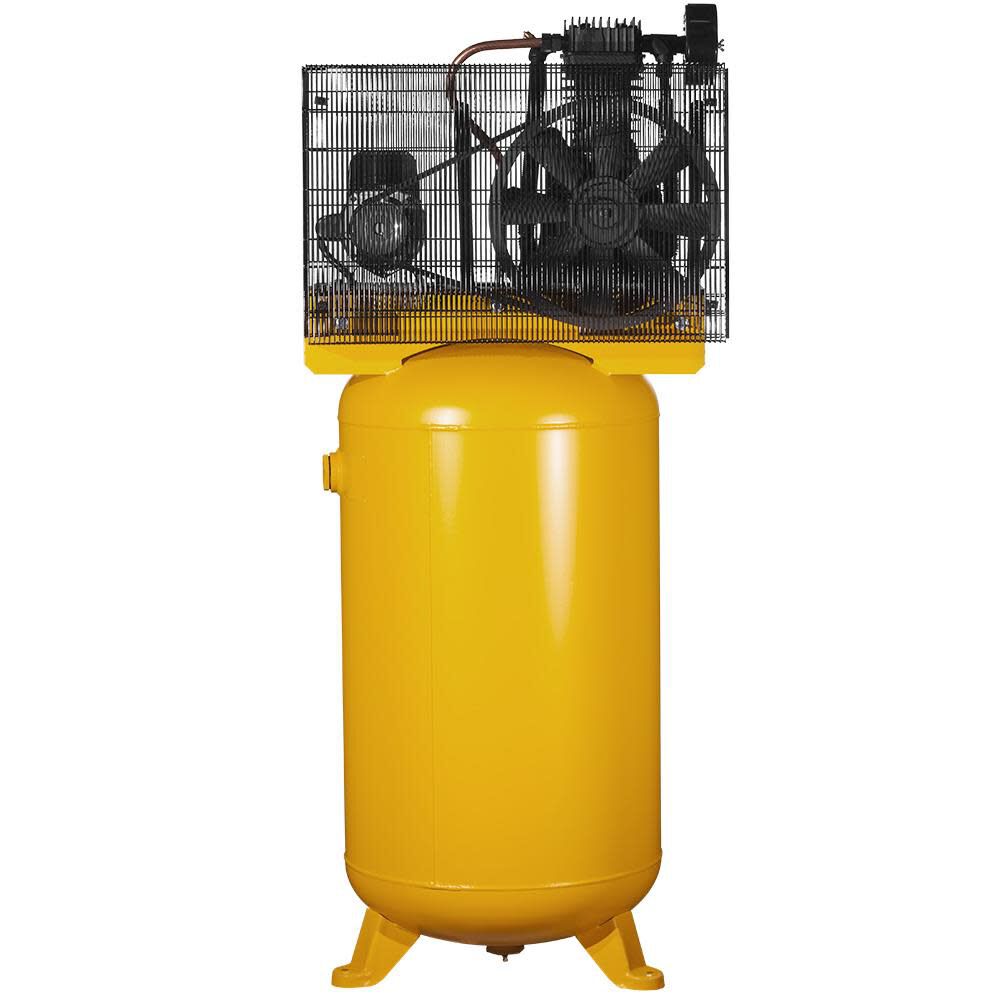

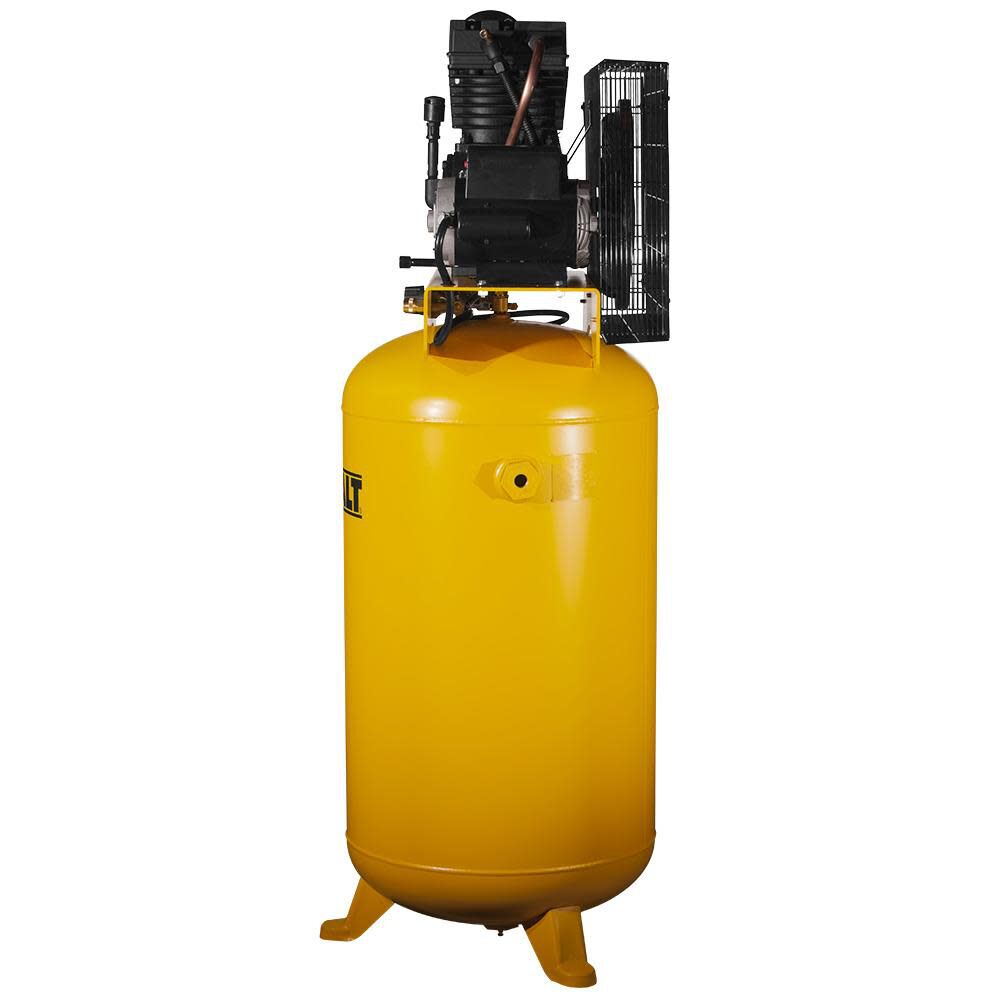

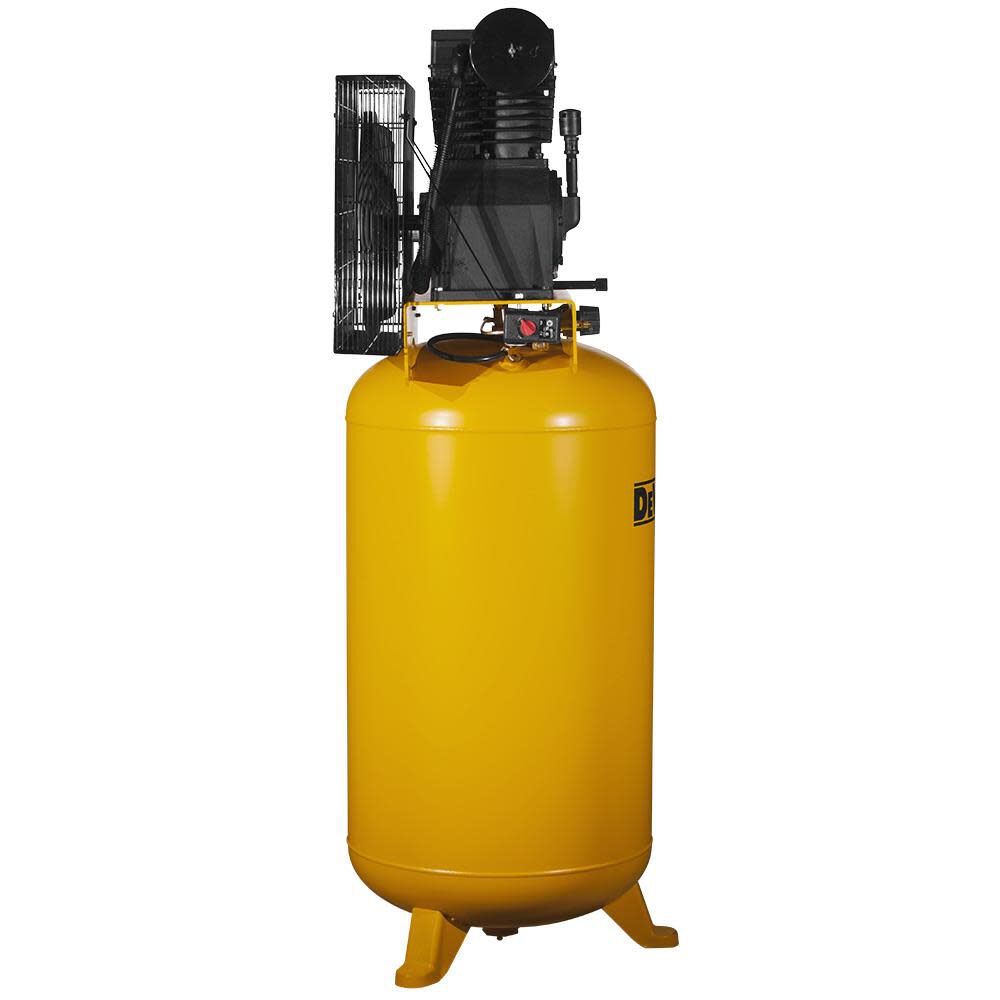

DEWALT DXCMV5048055 5 HP 80 Gallon two-stage ?C cast iron ?C Industrial Air compressor is a heavy-duty stationary air compressor. It utilizes its ability to deliver air at 175-PSI (Pressure per square inches) to effectively power more than one air tool or device simultaneously. The expertly engineered 5.0-horse-power, 230 V electric motor is fitted with a TOPS thermal overload protection system that protects the motor from voltage fluctuations. Featuring a rugged cast-iron two-stage pump that is built for durability by utilizing hardened-steel disc valves, oversized taper roller bearings, splash lubrication and a expertly balanced cast iron flywheel. It has been specifically designed with a conveniently integrated control panel that includes tank and working pressure gauges, airflow regulator, two quick-connect air outlets and a pressure relief valve. The 80 Gallon ASME (American society of mechanical engineers) air receiver holds more air for longer run times on multiple air tools.
DETAILS
- Brand Name: DEWALT
- Air Compressor Pump Design: Oil Lubricated
- Air Volume (CFM): 17.9 CFM at 100 PSI, 17.0 CFM at 175 PSI
- Amperage (A): 24.0
- Assembled Weight (lbs): 475
- California Proposition 65 Warning Required: Yes
- Color: Yellow
- Compressor Design: Vertical
- Country of Origin: United States
- CSA Certified: Yes
- ETL Listed: No
- Height (in): 80
- Horsepower (hp): 5.0
- Length: 34.75 in
- MFG Part # (OEM): DXCMV5048055
- Maximum Pressure Rating (psi): 175
- Operating Position: Vertical
- Package Contents: 80 Gallon Stationary Electric Air Compressor
- Phase: 1
- Product Condition: New
- Tank Capacity (gal): 80
- Tank Configuration: Single
- Tank Material: Steel
- Tank Pressure Gauge: Yes
- UL Listed: No
- UPC: 846212008638
- Voltage: 230
- Warranty Type: 2 Years Limited
- Weight (lbs): 475
- Wheeled: No
