DESCRIPTION

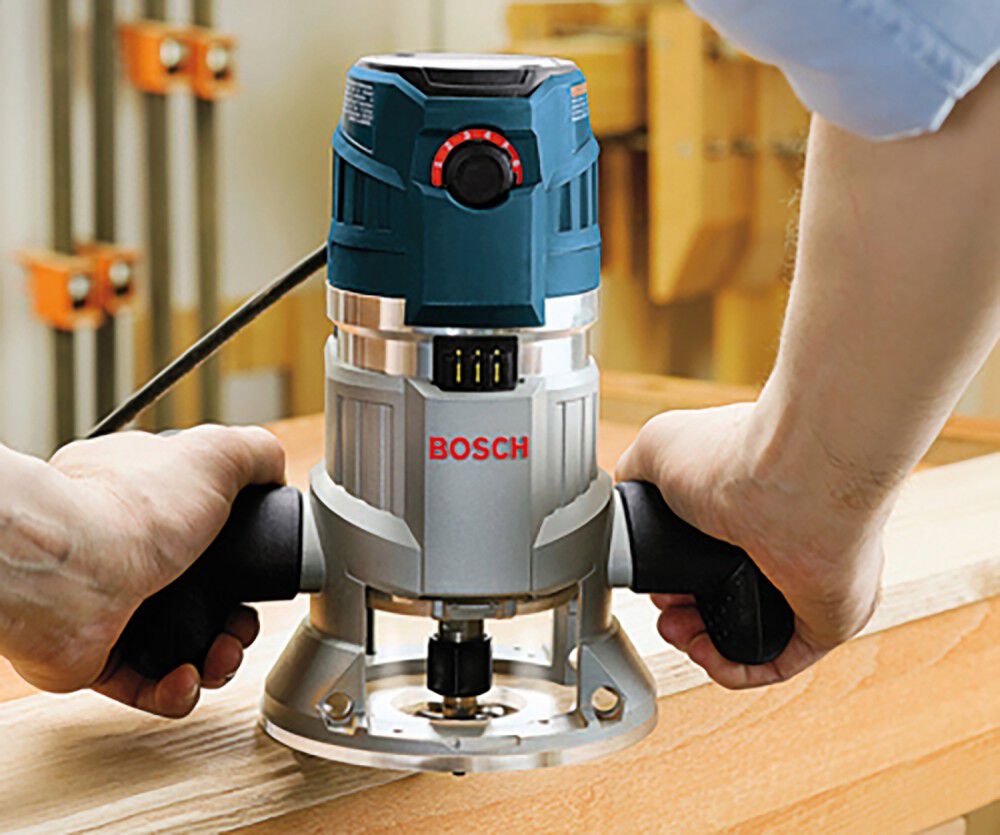

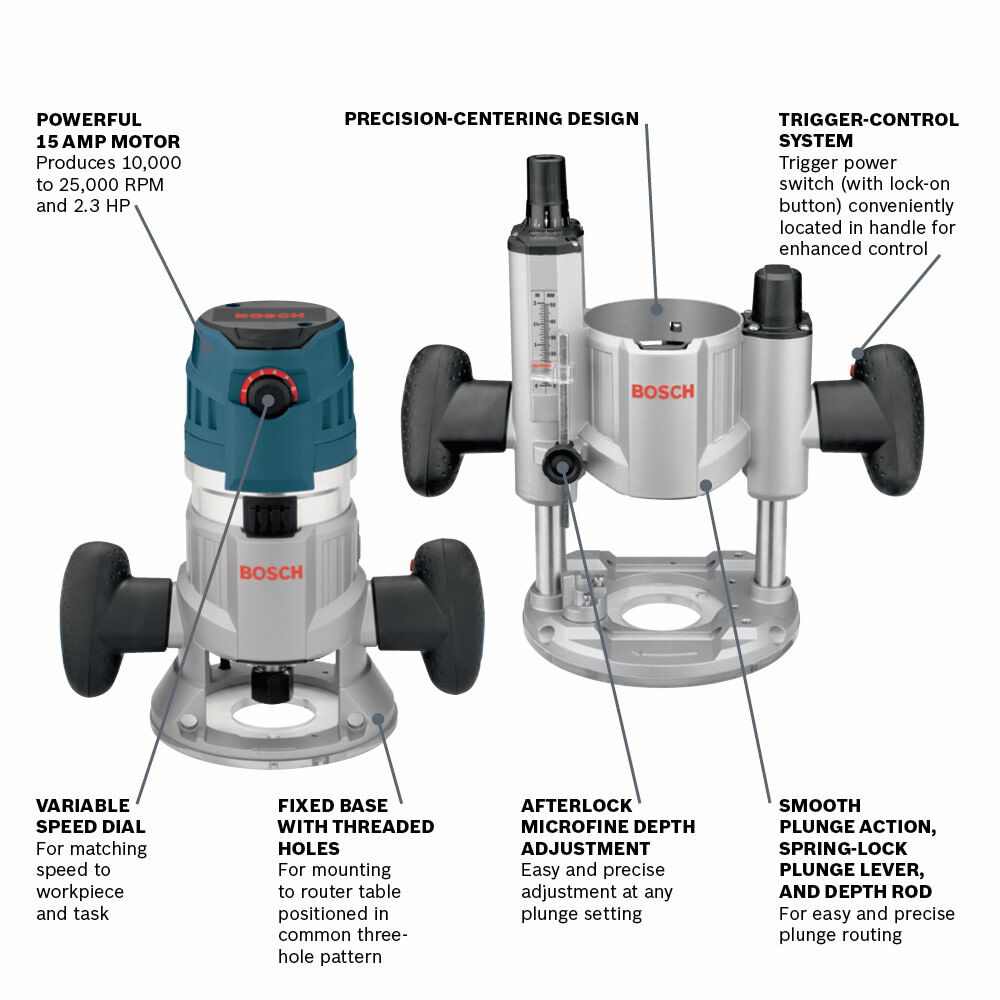

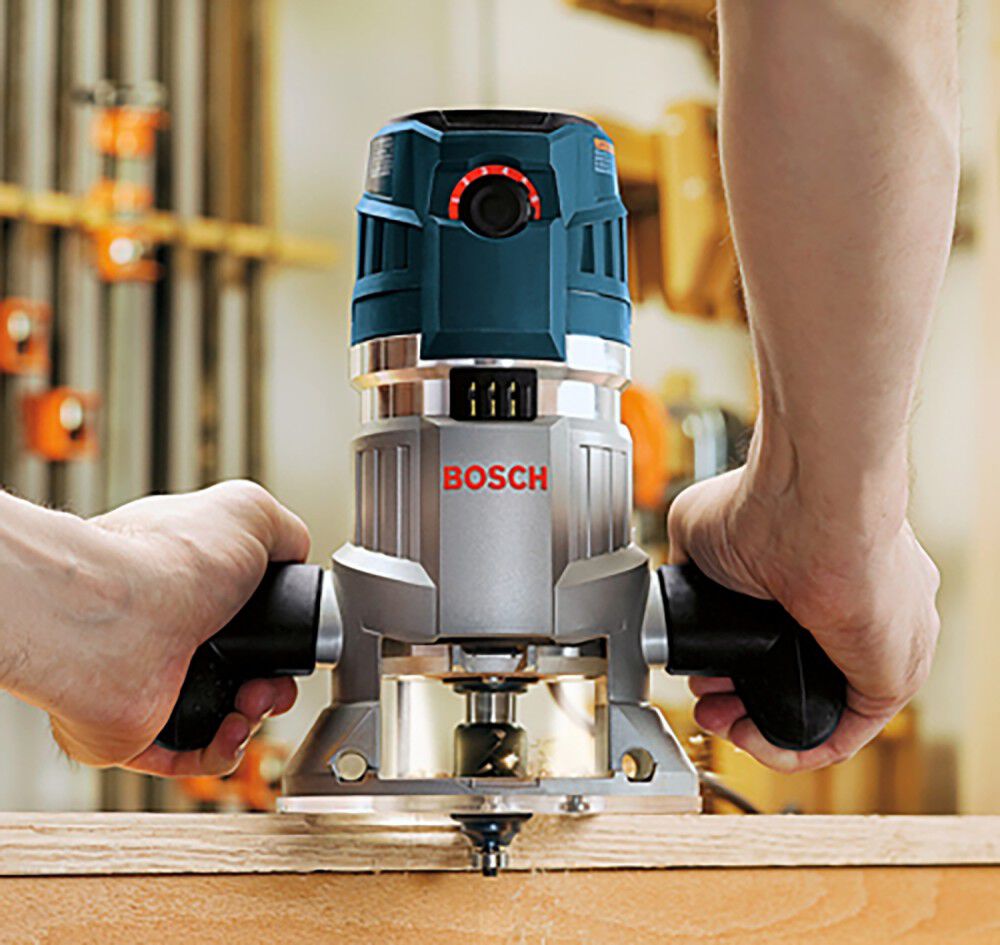

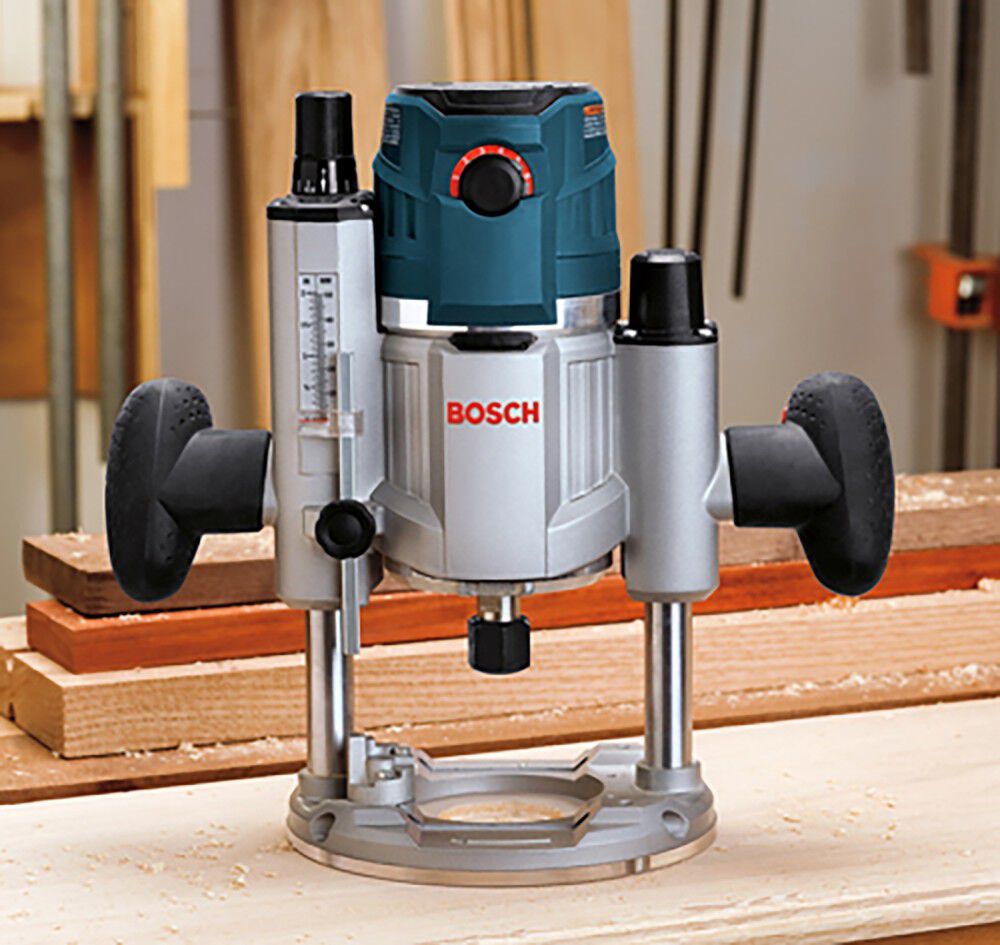

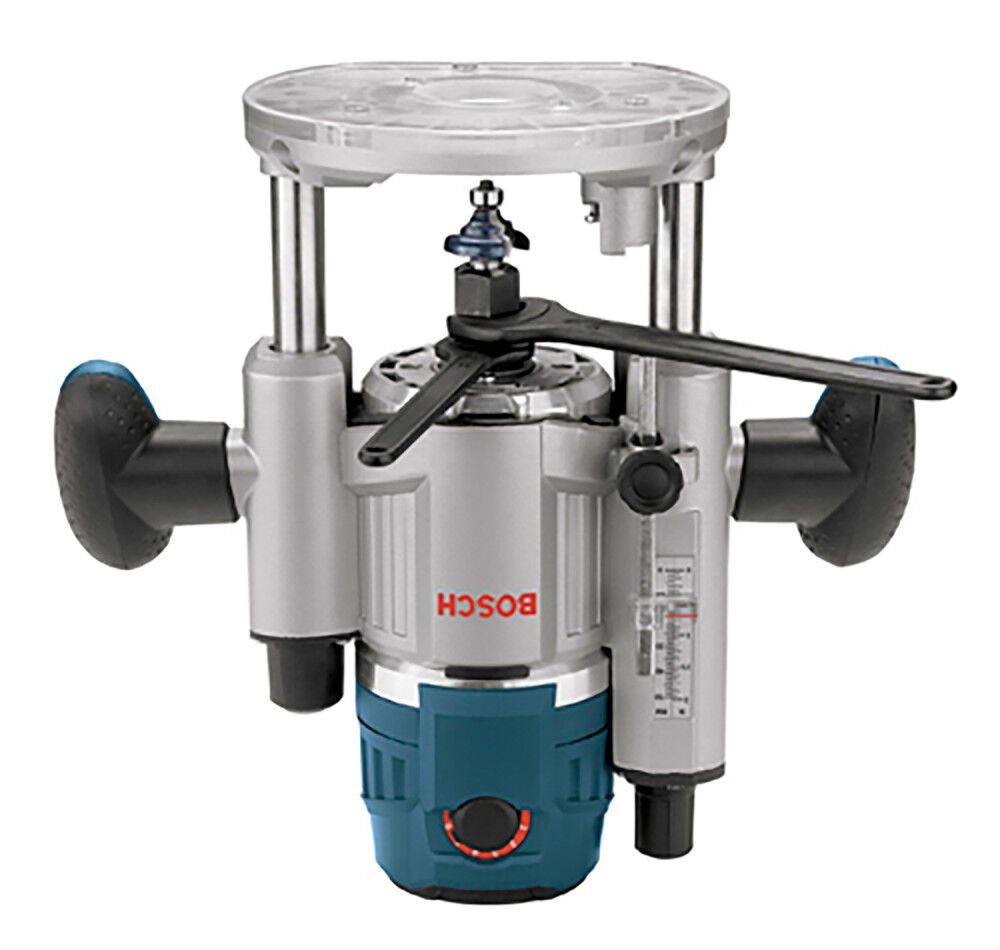

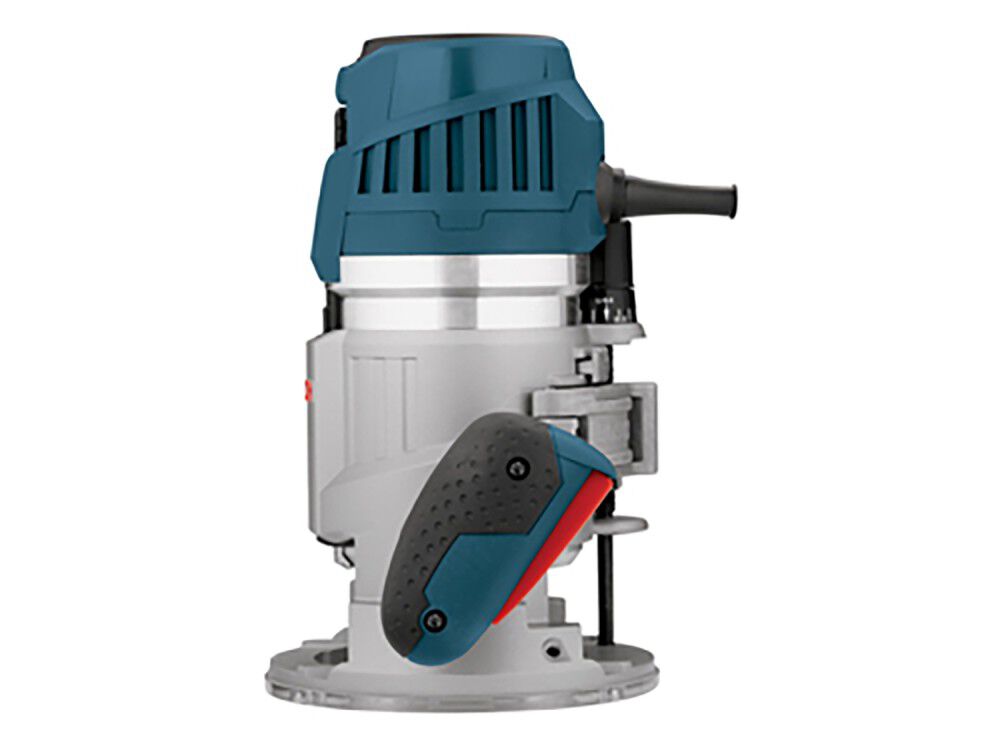

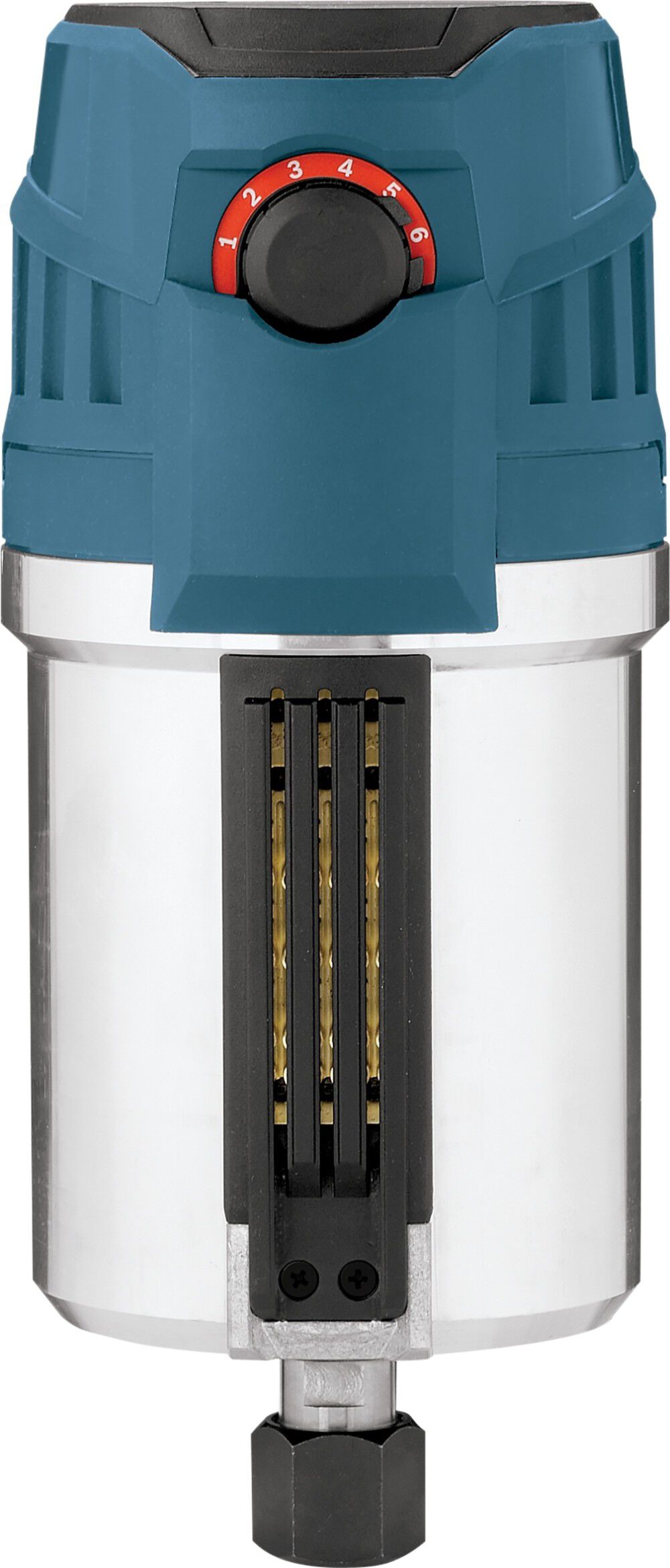

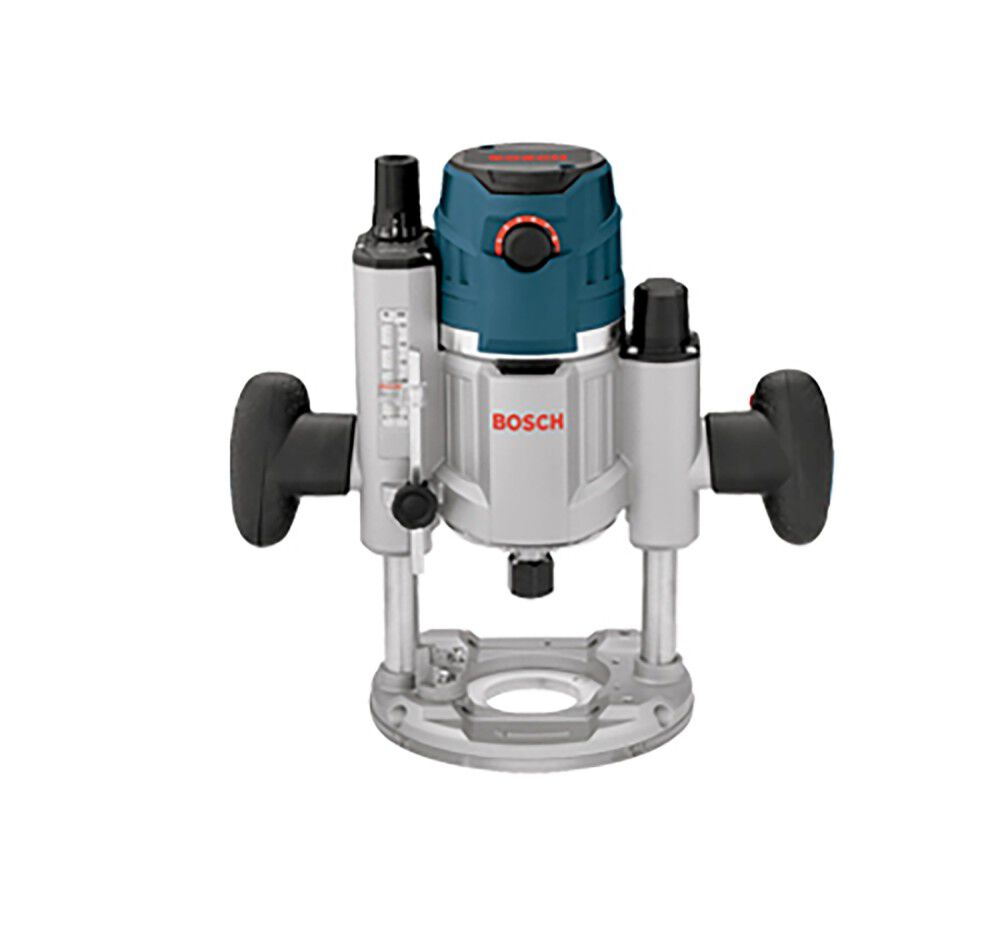

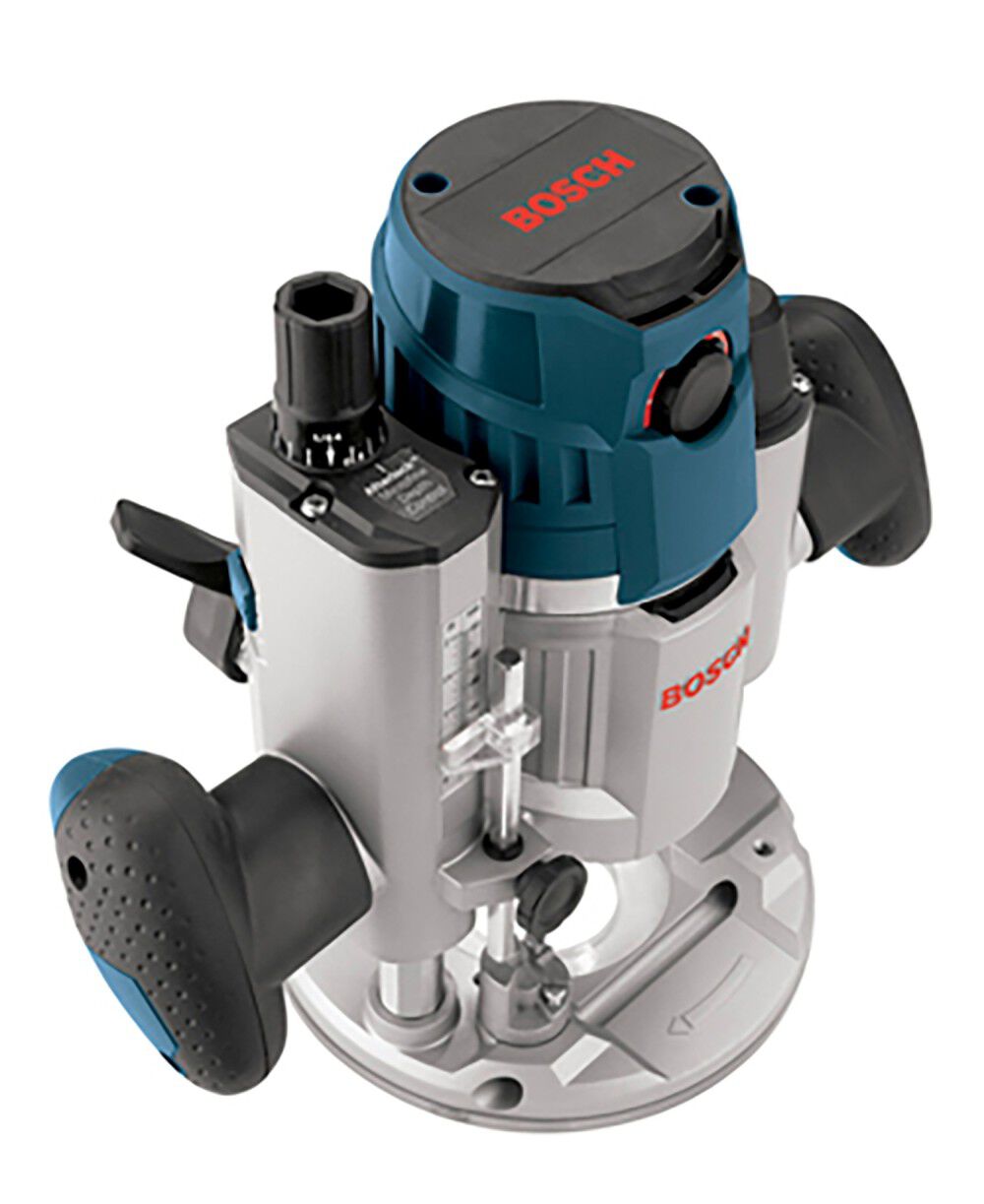

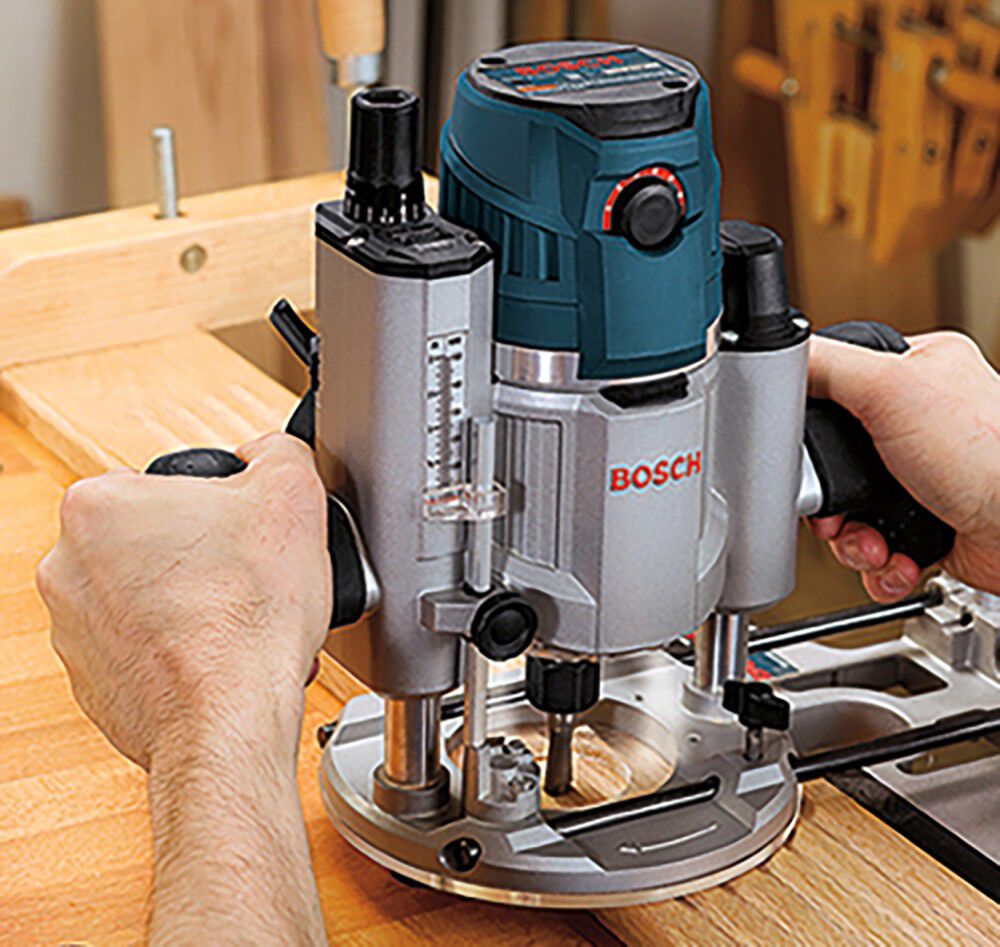

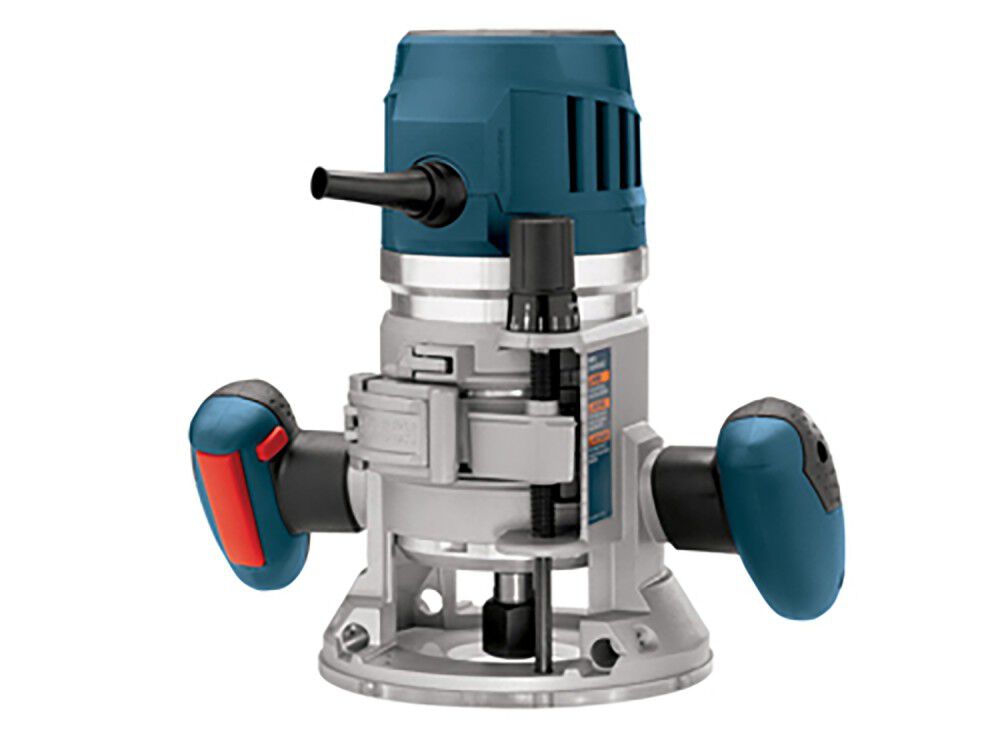

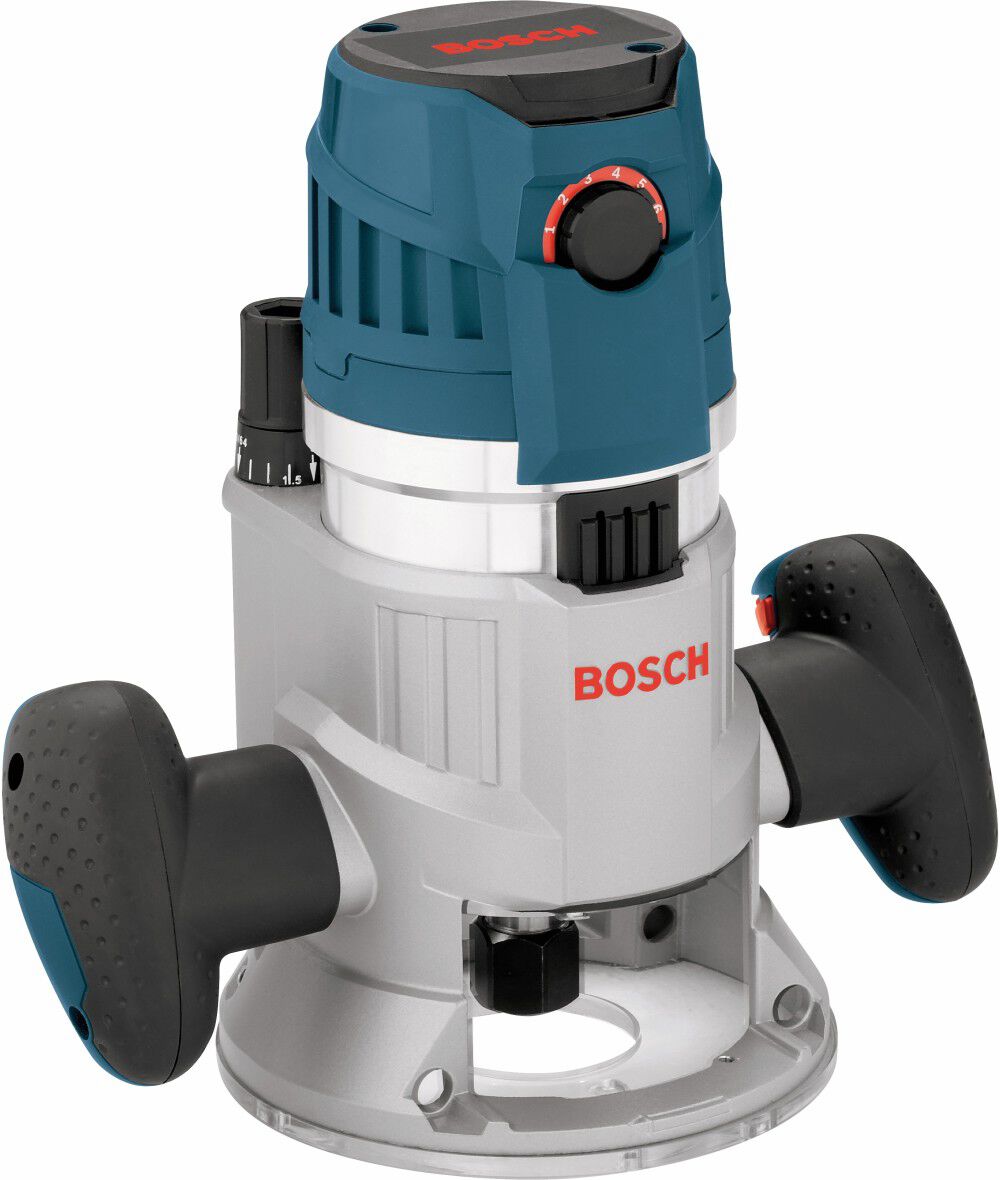

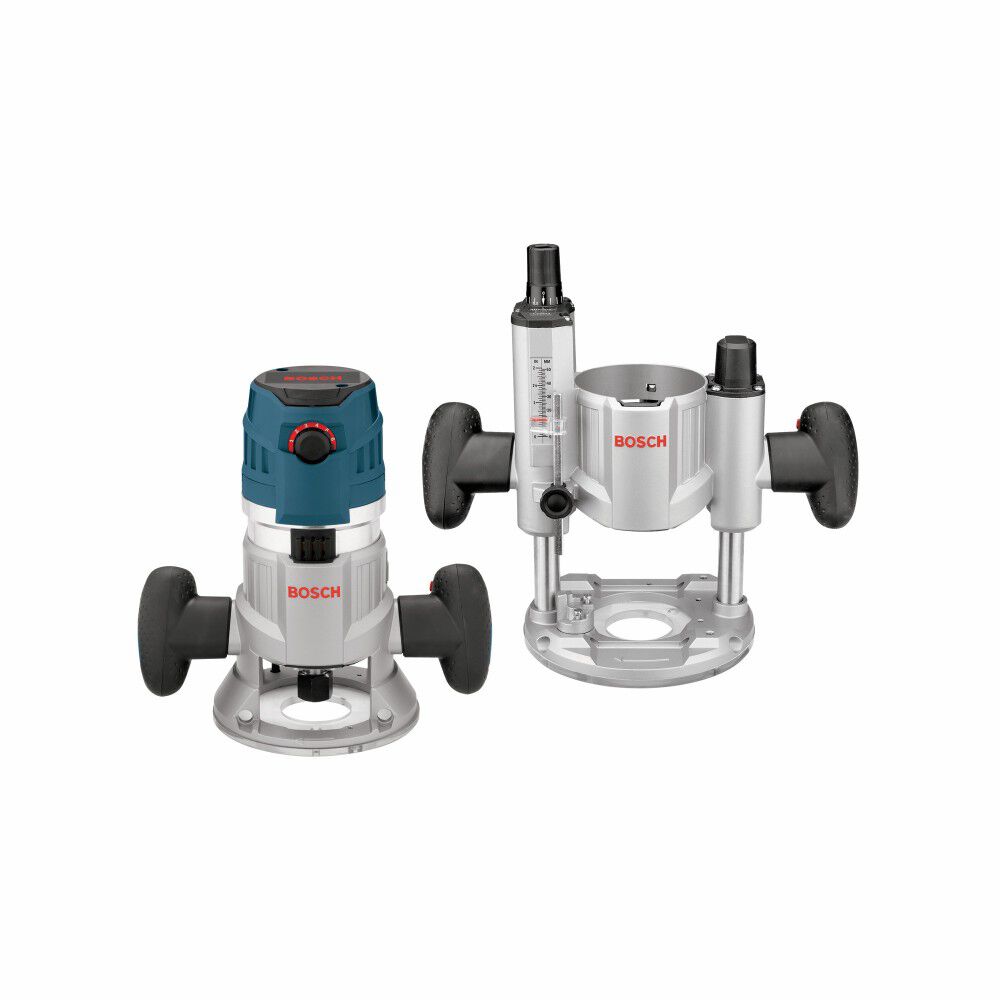

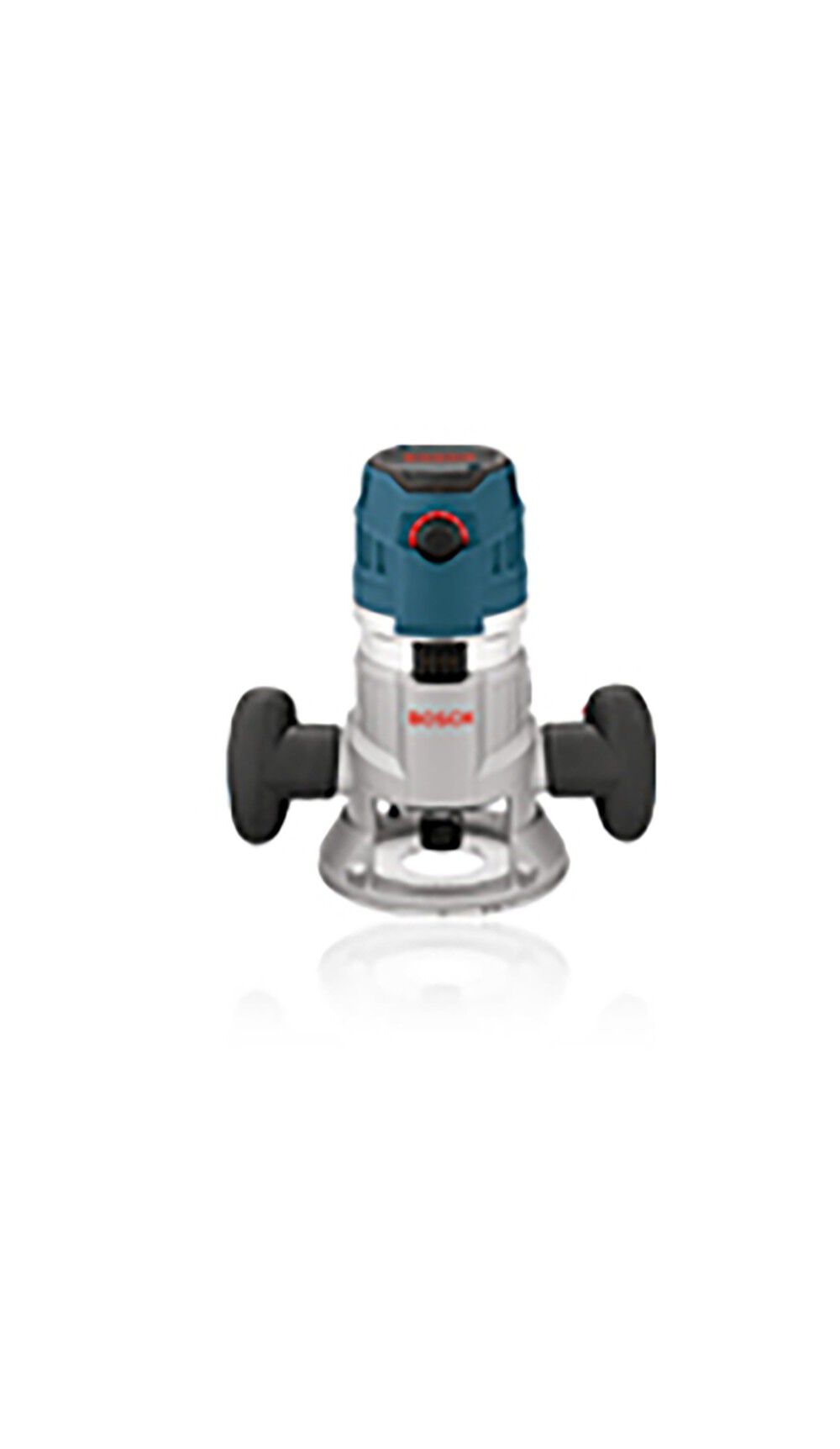

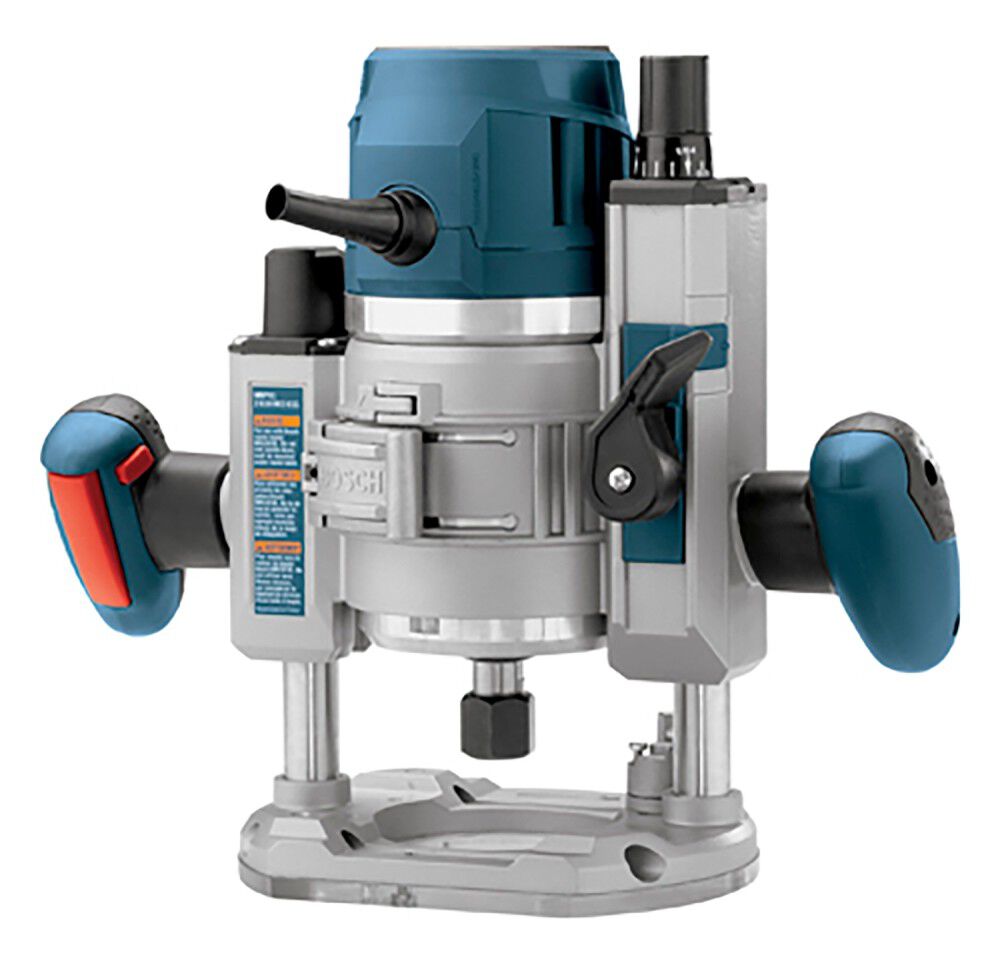

The Bosch MRC23EVSK 2.3 HP Electronic Modular Router System is an advanced set-up that provides a fixed base and a plunge base for the MR23EVS router. This system allows for outstanding operator control, with the trigger-control system that has a power switch in both the plunge-base??s and the fixed-base??s handle. The plunge base??s Afterlock microfine bit-depth adjustment at any plunge setting allows for precision, with an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. The fixed base has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. The router has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
DETAILS
- Brand Name: Bosch
- Amperage (A): 15
- Assembled Depth (in): 6.75
- Assembled Weight (lbs): 12.6
- Assembled Width (in): 12.6
- California Proposition 65 Warning Required: No
- Color: Blue
- Country of Origin: Mexico
- CSA Certified: No
- Depth Adjustment: Yes
- Dust Collection: No
- Electronic Speed Control: Yes
- ETL Listed: No
- Handle Type: Side Handles
- Height (in): 9.5??
- Horsepower (hp): 2.3
- Length: 120 in
- Lock-on Switch: Yes
- MFG Part # (OEM): MRC23EVSK
- Maximum RPM: 25000
- Net Tool Weight (lbs): 12.6
- Package Contents: Motor, Fixed Base (MRF01), Plunge base (MRP01), 1/4?? Self-Releasing Collet Chuck ?C 2 610 906 283, 1/2?? Self-Releasing Collet Chuck ?C 2 610 906 284, 16mm Shaft Wrench ?C 2 610 991 388, 24mm Collet Nut Wrench ?C 2 610 992 417, T-Handle Hex Height Adjustment Wrench ?C 2610923193, Carrying Case ?C 2 610 004 484, Pack of 3 M4 Screws for table mounting ?C 2610005966
- Product Condition: New
- Router Base Type: Fix / Plunge
- Restrictions: No Restrictions
- Spindle Lock: No
- Switch Type: Trigger switch in handles
- UL Listed: Yes
- UPC: 000346391503
- Variable Speed: Yes
- Voltage: 120.000000
- Warranty Type: 1 Year Limited
- Weight (lbs): 25.79
